Monday, April 18, 2016

Drools 6.4.0.Final is available

The latests and greatest Drools 6.4.0.Final release is now available for download.

This is an incremental release on our previous build that brings several improvements in the core engine and the web workbench.

You can find more details, downloads and documentation here:

Read below some of the highlights of the release.

You can also check the new releases for:

Happy drooling.

Drools Workbench

New look and feel

The general look and feel in the entire workbench has been updated to adopt PatternFly. The update brings a cleaner, lightweight and more consistent user experience throughout every screen. Allowing users focus on the data and the tasks by removing all unnecessary visual elements. Interactions and behaviour remain mostly unchanged, limiting the scope of this change to visual updates.

Various UI improvements

In addition to the PatternFly update described above which targeted the general look and feel, many individual components in the workbench have been improved to create a better user experience. This involved making sure the default size of modal popup windows is appropriate to fit the corresponding content, adjusting the size of text fields as well as aligning labels, and improving the resize behaviour of various components when used on smaller screens.

New Locales

Locales ru (Russian) and zh_TW (Chineses Traditional) have now been added.

New Decision Server Management UI

The KIE Execution Server Management UI has been completely redesigned to adjust to major improvements introduced recently. Besides the fact that new UI has been built from scratch and following best practices provided by PatternFly, the new interface expands previous features giving users more control of their servers.

Core Engine

Better Java 8 compatibility

It is now possible to use Java 8 syntax (lambdas and method references) in the Right Hand Side (then) part of a rule.

More robust incremental compilation

The incremental compilation (dynamic rule-base update) had some relevant flaws when one or more rules with a subnetwork (rules with complex existential patterns) were involved, especially when the same subnetwork was shared among different rules. This issue required a partial rewriting of the existing incremental compilation algorithm, followed by a complete audit that has also been validated by brand new test suite made by more than 20,000 test cases only in this area.

Improved multi-threading behaviour

Engine's code dealing with multi-threading has been partially rewritten in order to remove a large number of synchronisation points and improve stability and predictability.

OOPath improvements

OOPath has been introduced with Drools 6.3.0. In Drools 6.4.0 it has been enhanced to support a number of new features.


Oficial Wildfly Swarm #Drools Fraction

Oficial what? Long title for a quite small but useful contribution. Wildfly Swarm allows us to create rather small and self contained application including just what we need from the Wildfly Application Server. On this post we will be looking at the Drools Fraction provided to work with Wildfly Swarm. The main idea behind this fraction is to provide a quick way to bundle the Drools Server among with your own services inside a jar file that you can run anywhere.

Microservices World

Nowadays, while micro services are a trending topic we need to make sure that we can bundle our services as decoupled from other software as possible. For such a task, we can use Wildfly Swarm that allows us to create our services using a set of fractions instead of a whole JEE container. It also saves us a lot of time by allowing us to run our application without the need of downloading or installing a JEE container. With Swarm we will be able to just run java -jar <our services.jar> and we are ready to go.
In the particular case of Drools, the project provides a Web Application called Kie-Server (Drools Server) which offers a set of REST/SOAP/JMS endpoints to use as a service. You can load your domain specific rules inside this server and create new containers to use your different set of rules. But again, if we want to use it, we will need to worry about how to install it in Tomcat, Wildfly, Jetty, WebSphere, WebLogic, or any other Servlet Container. Each of these containers represent a different challenge while it comes to configurations, so instead of that we can start using the Wildfly Swarm Drools Fraction, which basically enables the Drools Server inside your Wildfly Swarm application. In a way you are bundling the Drools Server with your own custom services. By doing this, you can start the Drools Server by doing java -jar <your.jar> and you ready to go.
Imagine the other situation of dealing with several instances of Servlet Containers and deploying the WAR file to each of those containers. It gets worst if those containers are not all the same "brand" and version.
So let's take a quick look at an example of how you can get started using the Wildfly Swarm Drools Fraction.


I recommend you to take a look at the Wildfly Swarm Documentation first, to get you started on using Wildfly Swarm. If you know the basics, then you can include the Drools Fraction.
I've created an example using this fraction here:
The main goal of this example is to show how simple is to get you started with the Drools Fraction, and for that reason I'm not including any other service in this project. You are not restricted by that, and you can expose your own endpoints.
Notice in the pom.xml file two things:
  1. The Drools Server Fraction: By adding this dependency, the fraction is going to be activated while Wildfly Swarm bootstrap.
  2. The wildfly-swarm plugin: Notice in the plugin configuration that we are pointing to the App class which basically just start the container. (This can be avoided, but I wanted to show that if you want to start your own services or do your own deployments you can do that inside that class)
If you compile and package this project by doing mvn clean install, you will find in the target/ directory a file called:
drools-server-swarm-1.0-SNAPSHOT-swarm.jar which you can start by doing

java -jar drools-server-swarm-1.0-SNAPSHOT-swarm.jar

For this example, we will include one more flag when we start our project to make sure that our Drools Server can resolve the artefacts that I'm going to use later on, so it will be like this:

java -Dkie.maven.settings.custom=../src/main/resources/settings.xml -jar drools-server-swarm-1.0-SNAPSHOT-swarm.jar

By adding the "kie.maven.setting.custom" flag here we are letting the Drools Server know that we had configured an external maven repository to be used to resolve our artefacts. You can find the custom settings.xml file here.
Once you start this project and everything boots up (less than 2 seconds to start wildfly-swarm core + less than 14 to boot up the drools server) you are ready to start creating your KIE Containers with your domain specific rules.
You can find the output of running this app here. Notice the binding address for the http port:
WFLYUT0006: Undertow HTTP listener default listening on [0:0:0:0:0:0:0:0]:8083
Now you can start sending requests to http://localhost:8083/drools to interact with the server.
I've included in this project also a Chrome's Postman project for you to test some very simple request like:
  • Getting All the registered Containers -> GET http://localhost:8083/drools/server/containers
  • Creating a new container - > PUT http://localhost:8083/drools/server/containers/sample
  • Sending some commands like Insert Fact + Fire All Rules -> POST http://localhost:8083/drools/server/containers/instances/sample
You can import this file to Postman and fire the requests against your newly created Drools Server. Besides knowing to which URLs to PUT,POST or GET data, you also need to know about the required headers and Authentication details:
Authentication -> Basic
User: kieserver
Password: kieserver1!
Finally, you can find the source code of the Fraction here:
There are tons of things that can be improved, helpers to be provided, bugs to be fixed, so if you are up to the task, get in touch and let's the Drools fraction better for everyone.

Summing up

While I'm still writing the documentation for this fraction, you can start using it right away. Remember that the main goal of these Wildfly Swarm extensions is to make your life easier and save you some time when  you need to get something like the Drools Server in a small bundle and isolated package that doesn't require a server to be installed and configured.
If you have any questions about the Drools Fraction don't hesitate to write a comment here.


Wednesday, April 06, 2016

User and group management in jBPM and Drools Workbenches


This article talks about a new feature that allows the administration of the application's users and groups using an intuitive and friendly user interface that comes integrated in both jBPM and Drools Workbenches.

User and group management
Before the installation, setup and usage of this feature, this article talks about some previous concepts that need to be completely understood for the further usage.

So this article is split in those sections:
  • Security management providers and capabilities
  • Installation and setup
  • Usage
  • This feature is included from version 6.4.0.Final.
  • Sources available here.

Security management providers

A security environment is usually provided by the use of a realm. Realms are used to restrict the access for the different application's resources. So realms contains information about the users, groups, roles, permissions and and any other related information.

In most of the typical scenarios the application's security is delegated to the container's security mechanism, which consumes a given realm at same time. It's important to consider that there exist several realm implementations, for example Wildfly provides a realm based on the files, Tomcat provides a realm based on the tomcat-users.xml file, etc. So keep in mind that there is no single security realm to rely on, it can be different in each installation.

The jBPM and Drools workbenches are not an exception, they're build on top Uberfire framework (aka UF), which delegates the authorization and authentication to the underlying container's security environment as well, so the consumed realm is given by the concrete deployment configuration.

Security management providers

Due to the potential different security environments that have to be supported, the users and groups management provides a well defined management services API with some default built-in security management providers. A security management provider is the formal name given to a concrete user and group management service implementation for a given realm.

At this moment, by default there are three security management providers available:
Keep updated on new security management providers on further releases. You can easily build and register your own security management provider if non of the defaults fits in your environment.

Security management providers's capabilities

Each security realm can provide support different operations. For example consider the use of a Wildfly's realm based on properties files,  The contents for the is like:


As you can see, it's based on key-value pairs where the key is the username, and the value is the hashed value for the user's password. So a user is just defined by the key, by its username, it  does not have a name nor address, etc.

On the other hand, consider the use of a realm provided by a Keycloak server. The information for a user is composed by more user meta-data, such as surname, address, etc, as in the following image:

Admin user edit using the Keycloak sec. management provider

So the different services and client side components from the users and group management API are based on capabilitiesCapabilities are used to expose or restrict the available functionality provided by the different services and client side components. Examples of capabilities are:
  • Create user
  • Update user
  • Delete user
  • Update user attributes
  • Create group
  • Assign groups
  • Assign roles
  • etc

Each security management provider must specify a set of capabilities supported. From the previous examples you can note that the Wildfly security management provider does not support the capability for the management of the attributes for a user - the user is only composed by the user name. On the other hand the Keycloak provider does support this capability.

The different views and user interface components rely on the capabilities supported by each provider, so if a capability is not supported by the provider in use, the UI does not provide the views for the management of that capability. As an example, consider that a concrete provider does not support deleting users - the delete user button on the user interface will be not available.

Please take a look at the concrete service provider documentation to check all the supported capabilities for each one, the default ones can be found here.

If the security environment is not supported by any of the default providers, you can build your own. Please keep updated on further articles about how to create a custom security management provider.

Installation and setup

Before considering the installation and setup steps please note the following Drools and jBPM distributions come with built-in, pre-installed security management providers by default:
  • Wildfly / EAP distribution - Both distributions use the Wildfly security management provider configured for the use of the default realm files and
  • Tomcat distribution - It uses the Tomcat security management provider configured for the use of the default realm file tomcat-users.xml
If your realm settings are different from the defaults, please read each provider's documentation in order to apply the concrete settings.

On the other hand, if you're building your own security management provider or need to include it on an existing application, consider the following installation options:
  • Enable the security management feature on an existing WAR distribution
  • Setup and installation in an existing or new project (from sources)
NOTE: If no security management provider is installed in the application, there will be no available user interface for managing the security realm. Once a security management provider is installed and setup, the user and group management user interfaces are automatically enabled and accessible from the main menu.

Enable the security management feature on an existing WAR distribution
Given an existing WAR distribution of either Drools and jBPM workbenches, follow these steps in order to install and enable the user management feature:

  1. Ensure the following libraries are present on WEB-INF/lib:
    • WEB-INF/lib/uberfire-security-management-api-6.4.0.Final..jar
    •  WEB-INF/lib/uberfire-security-management-backend-6.4.0.Final..jar
  2. Add the concrete library for the security management provider to use in WEB-INF/lib:
    • Example: WEB-INF/lib/uberfire-security-management-wildfly-6.4.0.Final..jar
    • If the concrete provider you're using requires more libraries, add those as well. Please read each provider's documentation for more information.
  3. Replace the whole content for file WEB-INF/classes/, or if not present, create it. The settings present on this file depend on the concrete implementation you're using. Please read each provider's documentation for more information.
  4. If you're deploying on Wildfly or EAP, please check if the WEB-INF/jboss-deployment-structure.xml requires any update. Please read each provider's documentation for more information.

Setup and installation in an existing or new project (from sources)

If you're building an Uberfire based web application and you want to include the user and group management feature, please read this instructions.

Disabling the security management feature

he security management feature can be disabled, and thus no services or user interface will be available, by any of

  • Uninstalling the security management provider from the application

    When no concrete security management provider installed on the application, the user and group management feature will be disabled and no services or user interface will be presented to the user.
  • Removing or commenting the security management configuration file

    Removing or commenting all the lines in the configuration file located at WEB-INF/classes/ will disable the user and group management feature and no services or user interface will be presented to the user.


The user and group management feature is presented using two different perspectives that are available from the main Home menu (considering that the feature is enabled) as:
User and group management menu entries
Read the following sections for using both user and group management perspectives.

User management

The user management interface is available from the User management menu entry in the Home menu.

The interface is presented using two main panels:  the users explorer on the west panel and the user editor on the center one:

User management perspective

The users explorer, on west panel, lists by default all the users present on the application's security realm:

Users explorer panel
In addition to listing all users, the users explorer allows:

  • Searching users

    When specifying the search pattern in the search box the users list will be reduced and will display only the users that matches the search pattern.

    Search patterns depend on the concrete security management provider being used by the application's. Please read each provider's documentation for more information.
  • Creating new users:

    By clicking on the Create new user button, a new screen will be presented on the center panel to perform a new user creation.
The user editor, on the center panel, is used to create, view, update or delete users. Once creating a new user o clicking an existing user on the users explorer, the user editor screen is opened.

To view an existing user, click on an existing user in the Users Explorer to open the User Editor screen. For example, viewing the admin user when using the Wildfly security management provider results in this screen:

Viewing the admin user
Same admin user view operation but when using the Keycloak security management provider, instead of the Wildfly's one, results in this screen:

Using the Keycloak sec. management provider
As you can see, the user editor when using the Keycloak sec. management provider includes the user attributes management section, but it's not present when using the Wildfly's one. So remember that the information and actions available on the user interface depends on each provider's capabilities (as explained in previous sections),

Viewing a user in the user editor provides the following information (if provider supports it):
  • The user name
  • The user's attributes
  • The assigned groups
  • The assigned roles
In order to update or delete an existing user, click on the Edit button present near to the username in the user editor screen:

Editing admin user
Once the user editor presented in edit mode, different operations can be done (if the security management provider in use supports it):
  • Update the user's attributes

    Existing user attributes can be updated, such as the user name, the surname, etc. New attributes can be created as well, if the security management provider supports it.
  • Update assigned groups

    A group selection popup is presented when clicking on Add to groups button:

    This popup screen allows the user to search and select or deselect the groups assigned for the user currently being edited.
  • Update assigned roles

    A role selection popup is presented when clicking on Add to roles button:

    This popup screen allows the user to search and select or deselect the roles assigned for the user currently being edited.

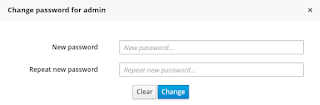

  • Change user's password

    A change password popup screen is presented when clicking on the Change password button:

  • Delete user

    The currently being edited user can be deleted from the realm by clicking on the Delete button.
Group management

The group management interface is available from the Group management menu entry in the Home menu.

The interface is presented using two main panels:  the groups explorer on the west panel and the group editor on the center one:

Group management perspective
The groups explorer, on west panel, lists by default all the groups present on the application's security realm:

Groups explorer
In addition to listing all groups, the groups explorer allows:

  • Searching for groups

    When specifying the search pattern in the search box the users list will be reduced and will display only the users that matches the search pattern.
    Groups explorer filtered using search
    Search patterns depend on the concrete security management provider being used by the application's. Please read each provider's documentation for more information.
  • Create new groups

    By clicking on the Create new group button, a new screen will be presented on the center panel to perform a new group creation. Once the new group has been created, it allows to assign users to it:
    Assign users to the recently created group
The group editor, on the center panel, is used to create, view or delete groups. Once creating a new group o clicking an existing group on the groups explorer, the group editor screen is opened.

To view an existing group, click on an existing user in the Groups Explorer to open the Group Editor screen. For example, viewing the sales group results in this screen:

Viewing the sales group
To delete an existing group just click on the Delete button.


Monday, April 04, 2016

Mastering #Drools 6 book is out!

Hi everyone, just a quick post to share the good news! The book is out and ready to ship! You can buy it from Packt or from Amazon directly. I'm happy to announce also that we are going to be presenting the book next week in Denmark, with the local JBug: if you are around or know someone that might be interested in attending please let them know!

Mastering Drools 6
The book covers a wide range of topics from the basic ones including how to set up your environment and how to write simple rules, to more advanced topics such as Complex Event Processing and the core of the Rule Engine, the PHREAK algorithm.
